OMP Hobby M5 RC Helicopter

Description

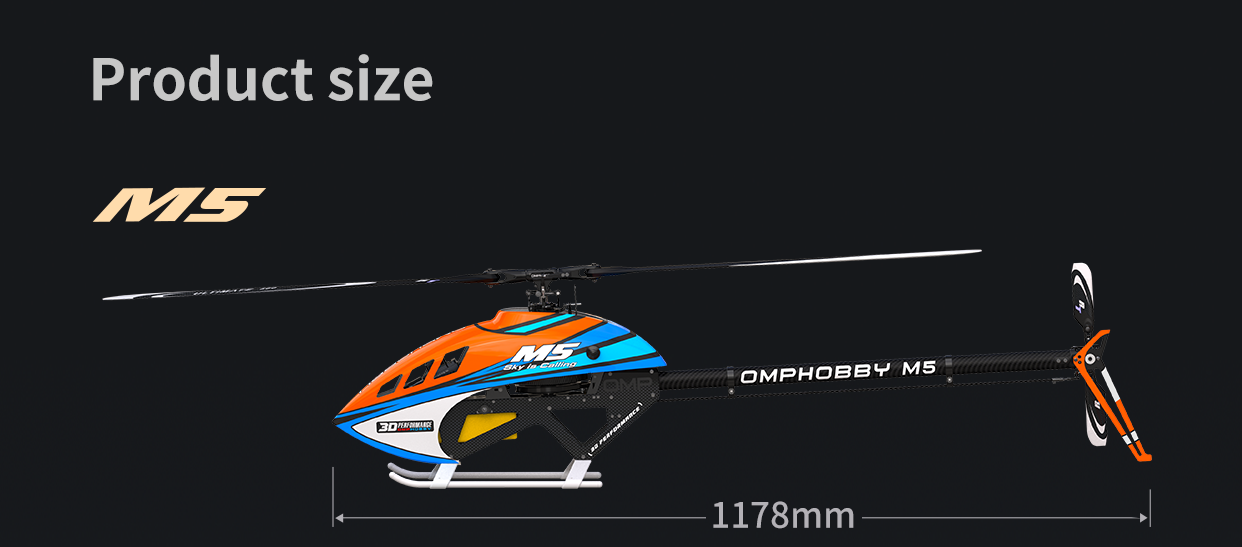

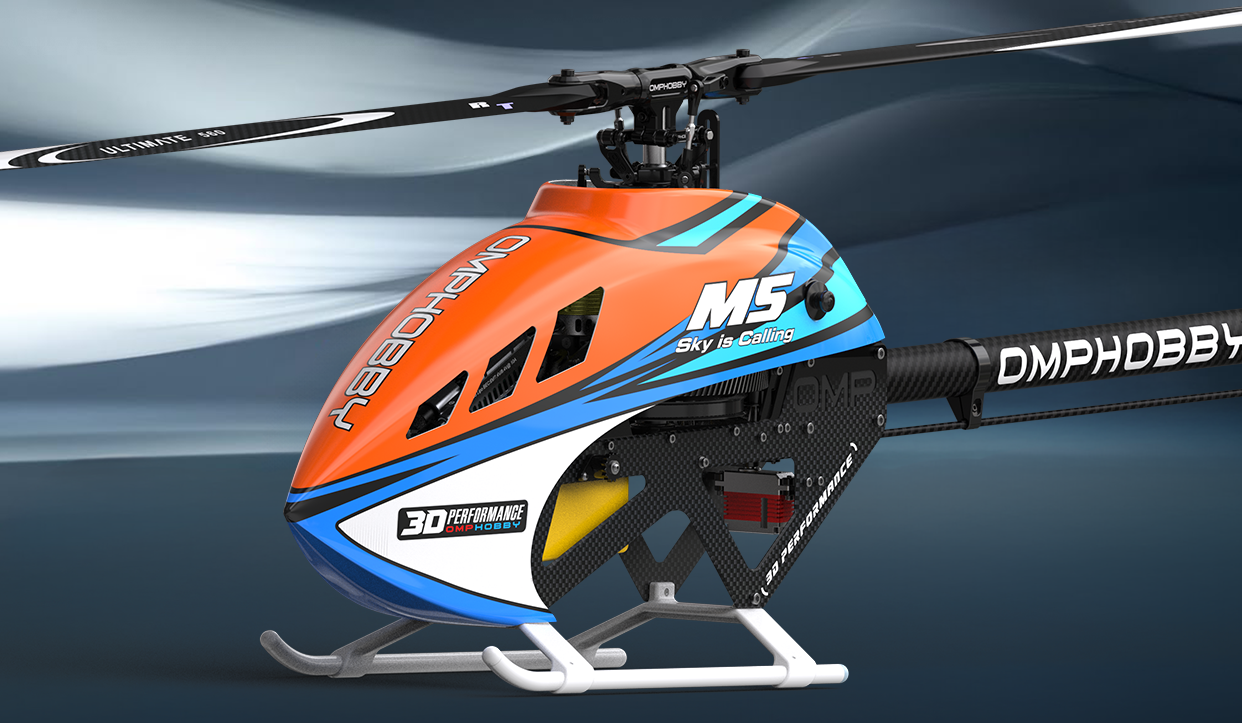

Take off into new worlds of versatility, flexibility, and flight performance: Introducing OMP Hobby M5! The M5 RC Helicopter is OMP Hobby's new 550 size RC Helicopter, designed for up to 580 mm main rotor blades, on 6S - 8S power systems.

General Features

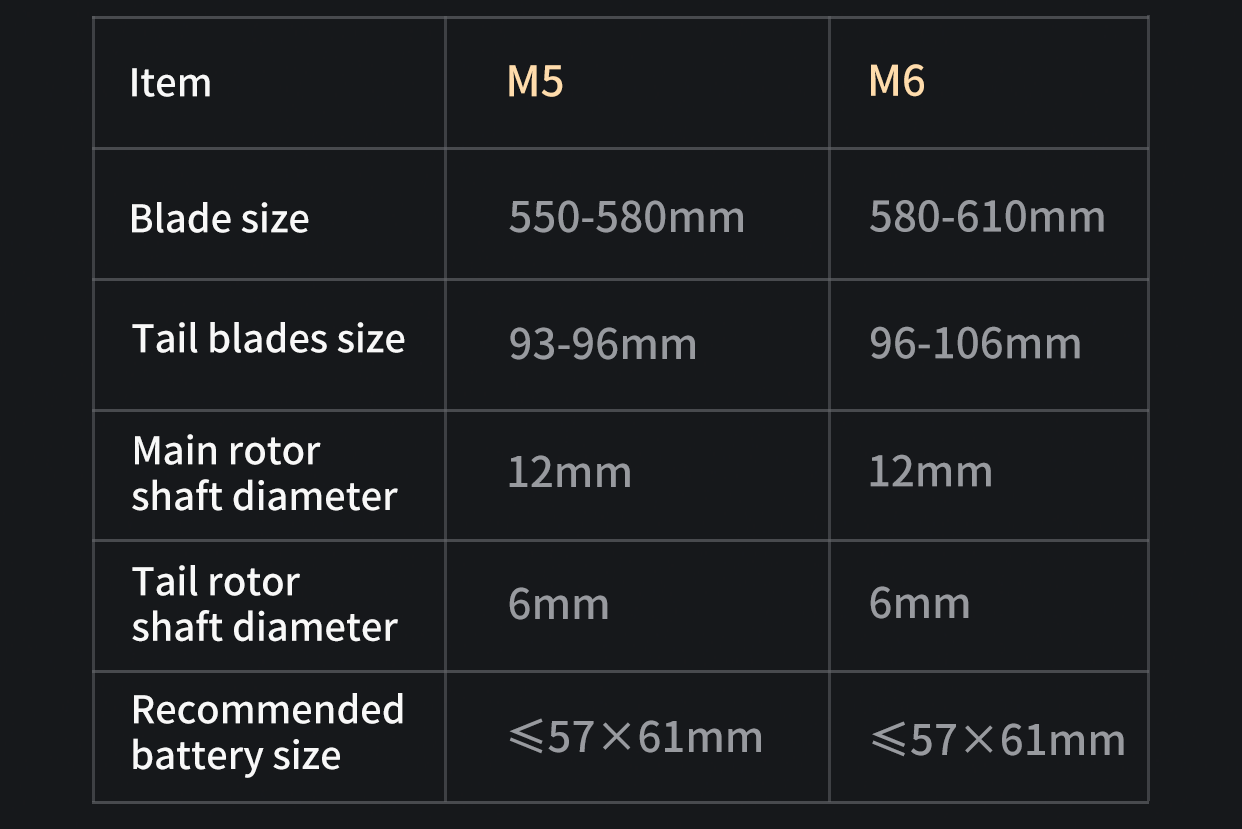

• M5 blade size: 550 mm - 580 mm, tail blades 93 mm - 96 mm
• 90%+ shared parts between M5 and M6

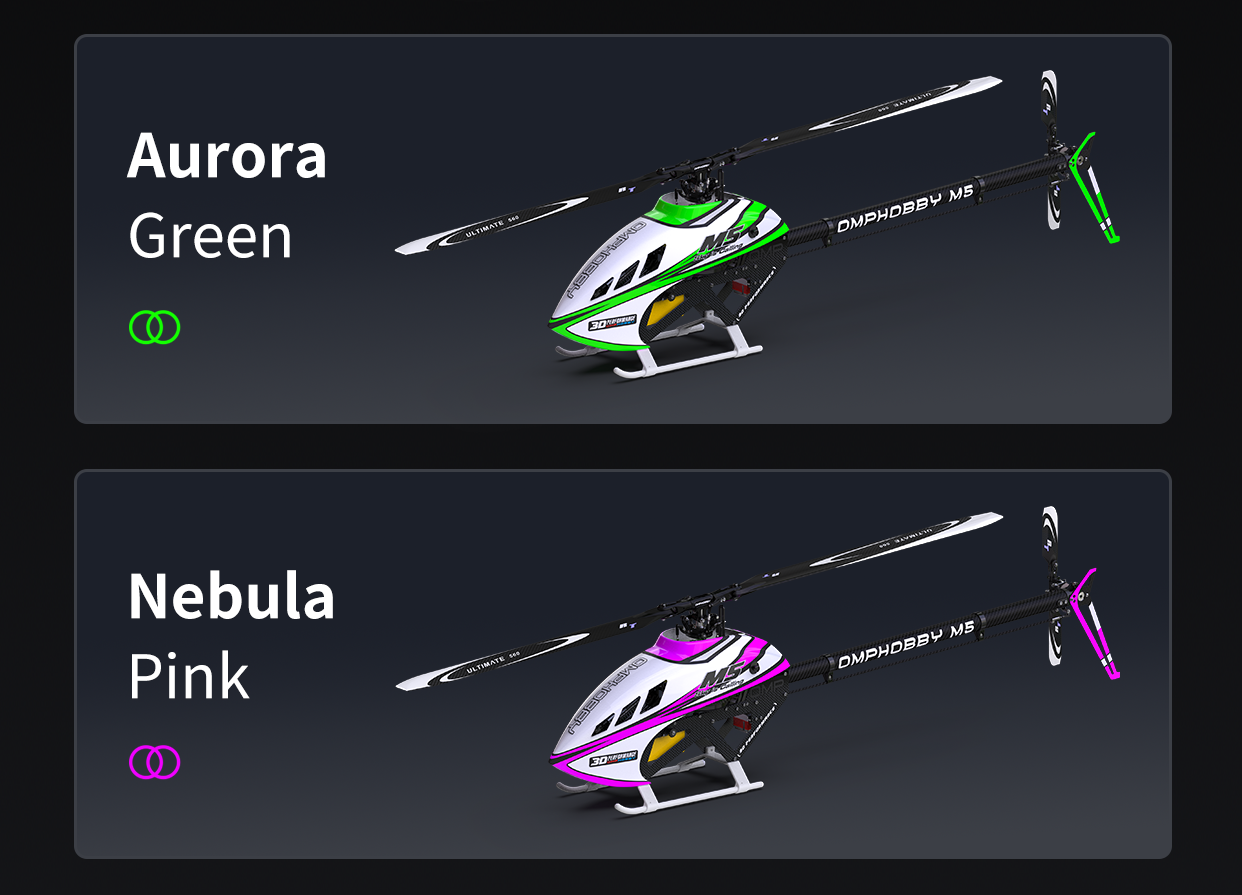

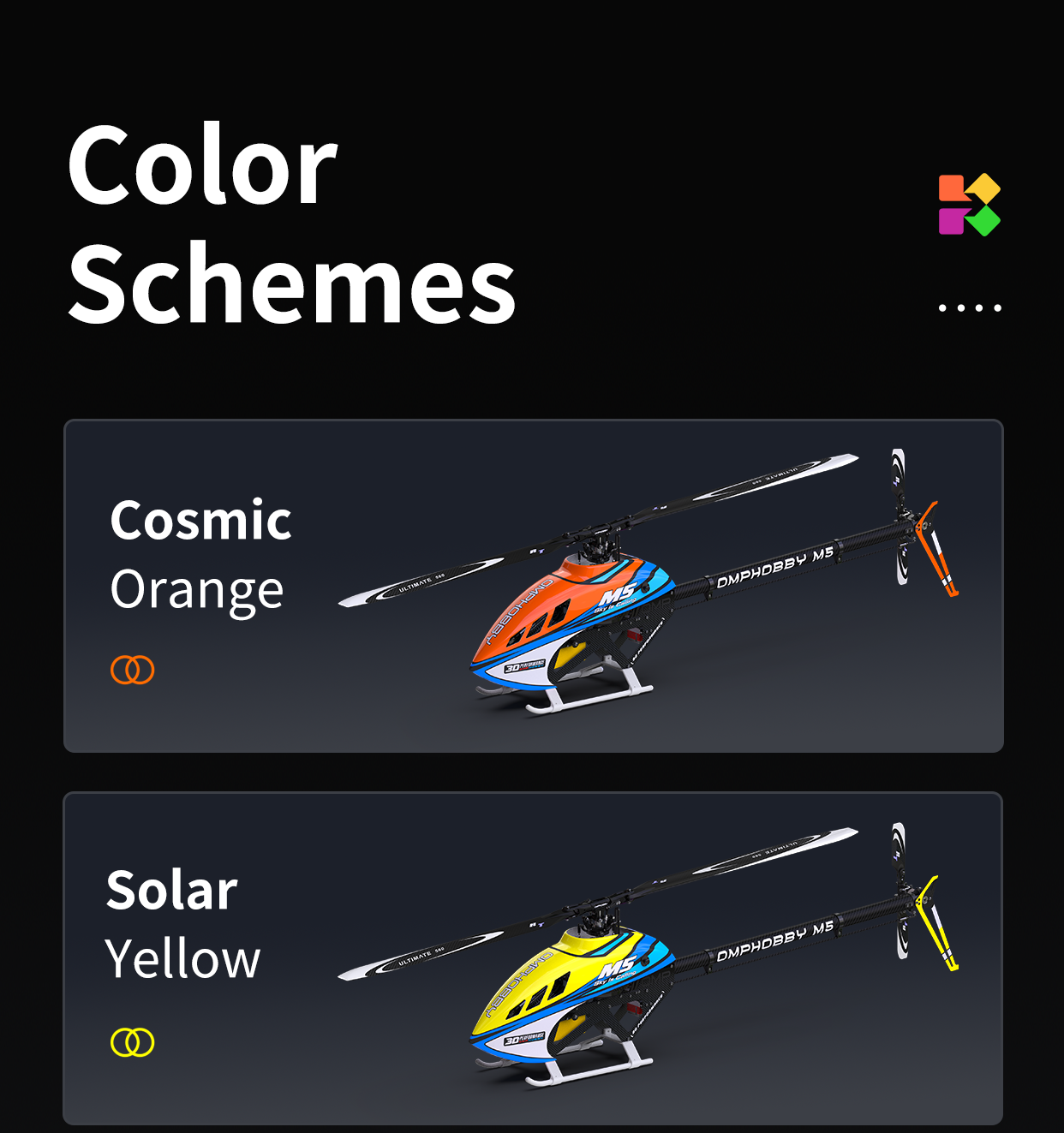

• Four stunning canopy options, including two new inverted colors: Cosmic Orange, Solar Yellow, Aurora Green, and Nebula Pink
• Built and tested for the hardest 3D flying styles
• 12mm main rotor shaft, 6mm tail rotor shaft
• 15 mm cyclic servos, 15 mm tail servo
• Can be crossgraded to 20 mm servos, if desired
• Light airframe weight of 1405 g

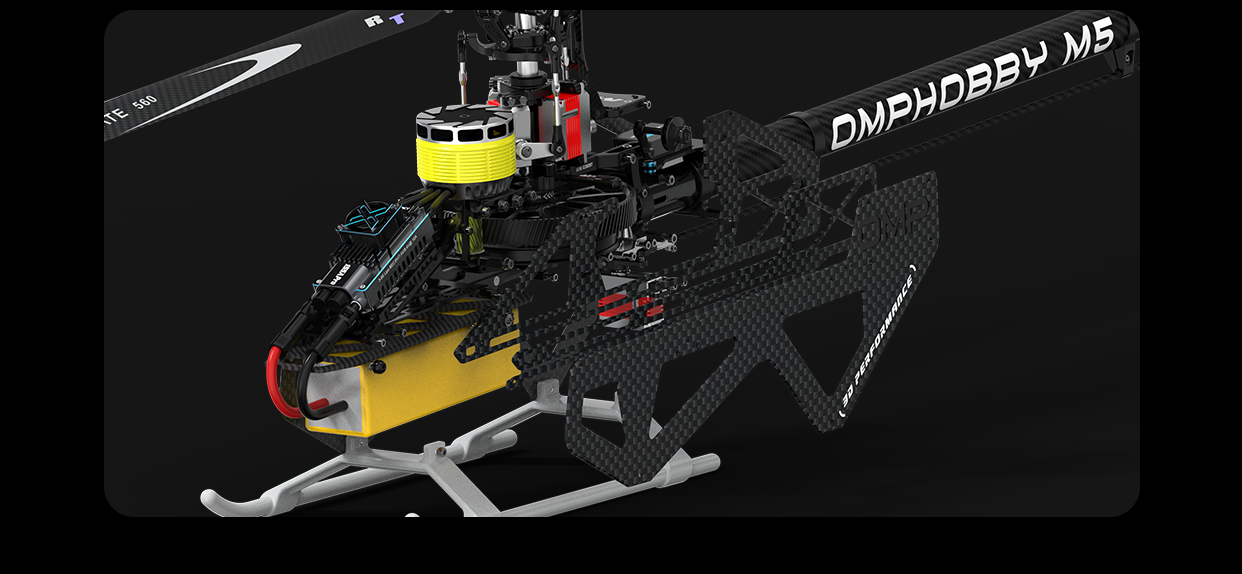

Frame features

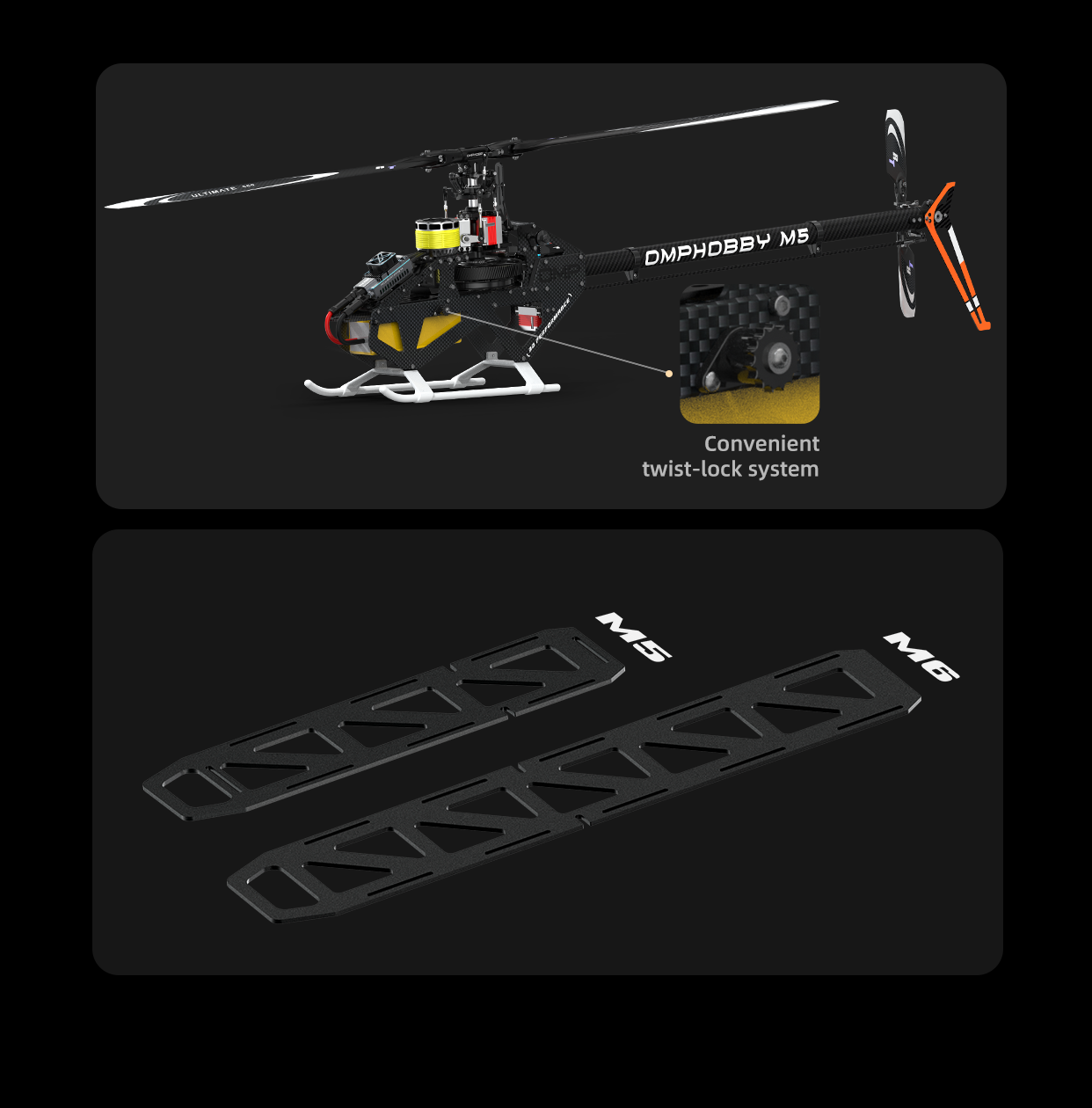

• Battery rails integrated into side frame panel stack

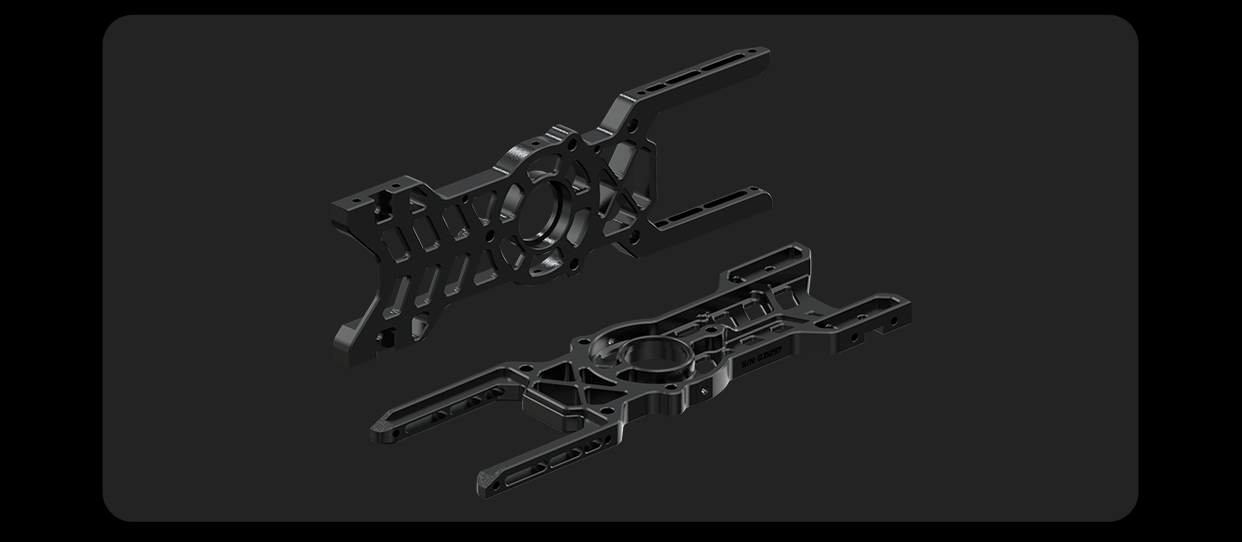

• Low parts count airframe with light-weight aluminum main plate
• High-end chamfered carbon fiber lower frames

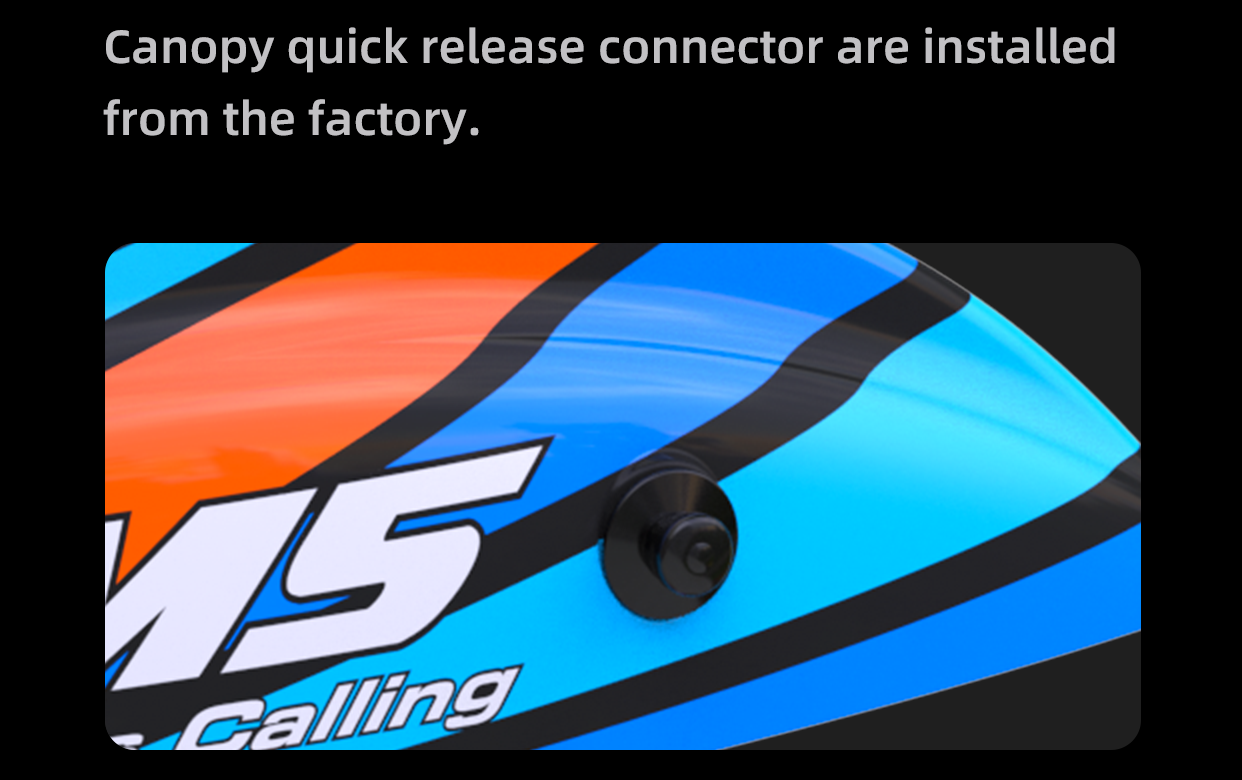

• Quick release latches for canopy and battery tray from M7
• Integrated wiring paths throughout the airframe
• Central main plate provides rigidity and ease of maintenance
• Motor carrier rails make setting gear mesh effortless
• Modular servo rack makes servo installation and wiring a breeze
• Auxiliary plate under ESC plate, receiver plate available in the back
• Pre-drilled ESC mounting holes for all major ESC brands
• Triple carbon plate reinforced tail boom mounting guarantees unparalleled rigidity

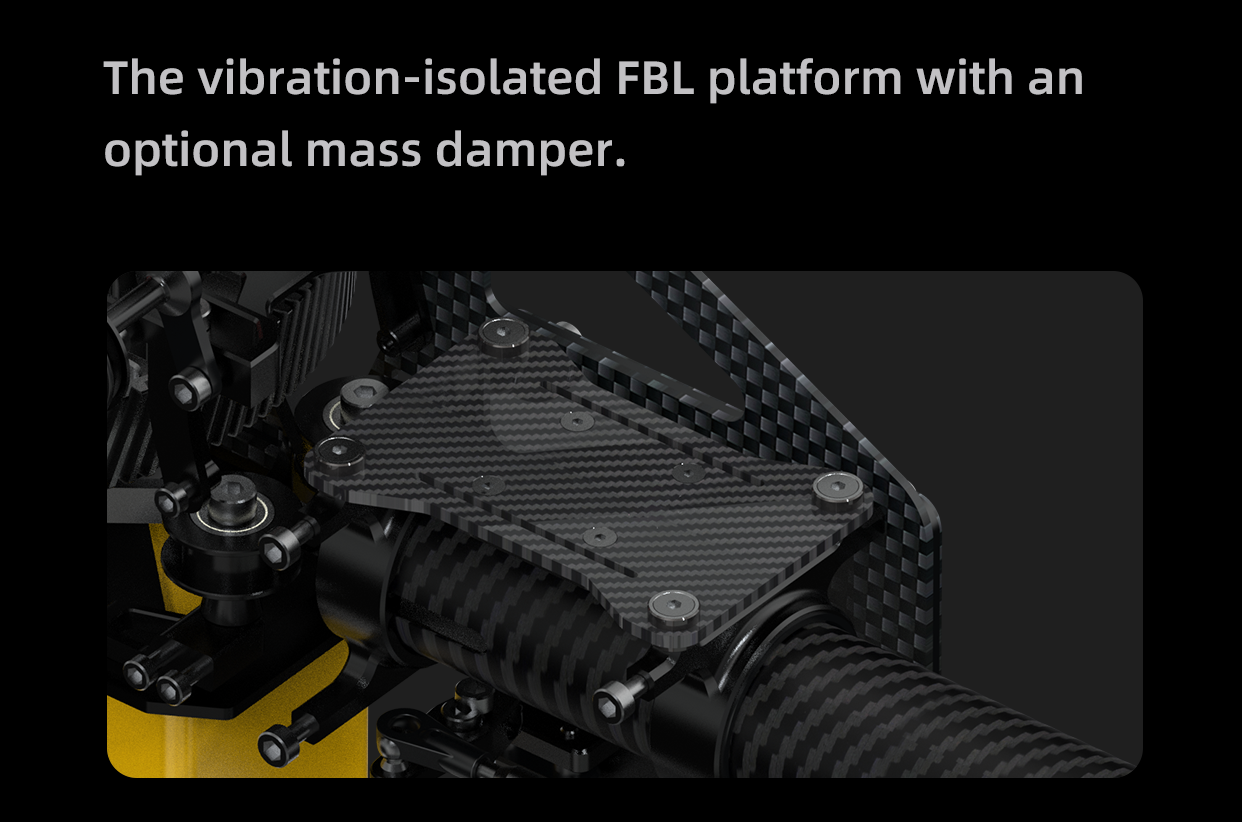

• Damped flight controller platform known from M7

Drivetrain Features

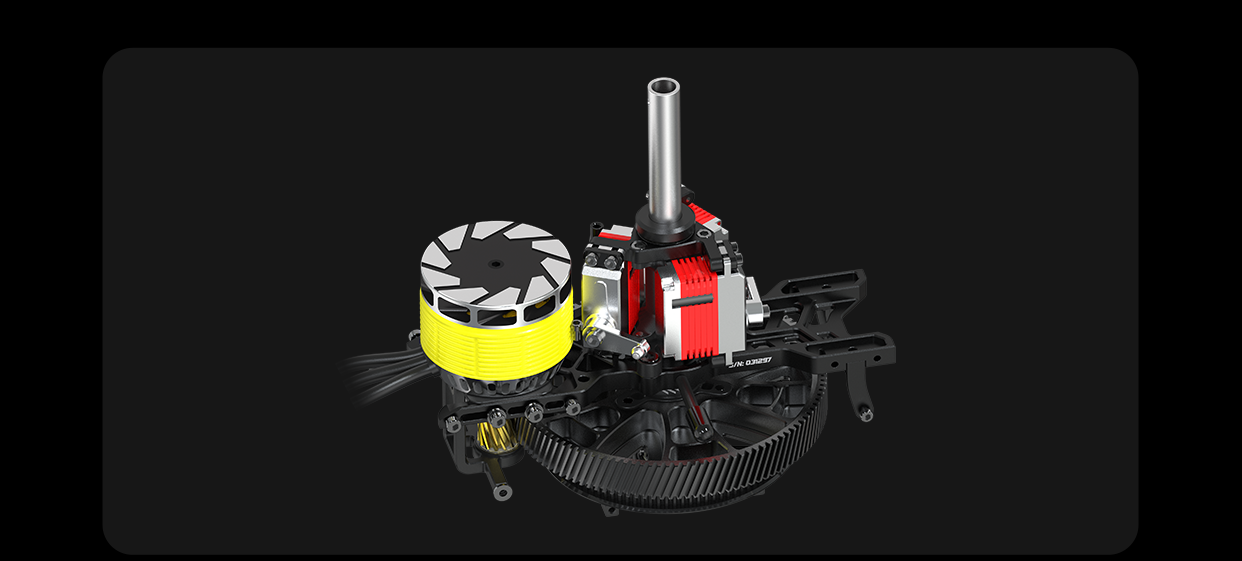

• FEA optimized main gear structure reduces bending under load by 25%
• Motor shaft lengths from 15 to 60 mm supported, ⌀ 6 mm
• 11t, 12t, 13t, 14t and 15t pinions available
• 15 mm tall gears guarantee quiet and efficient, yet durable power transfer
• 115t main gear (Ratios 10.455, 9.583, 8.846, 8.214, 7.667)

Tail features

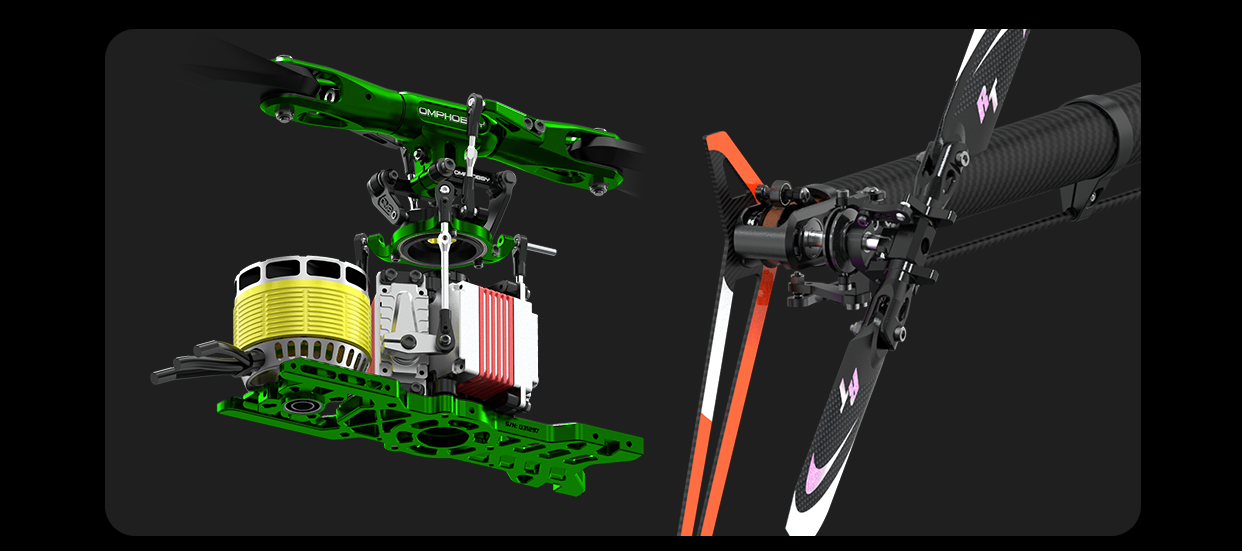

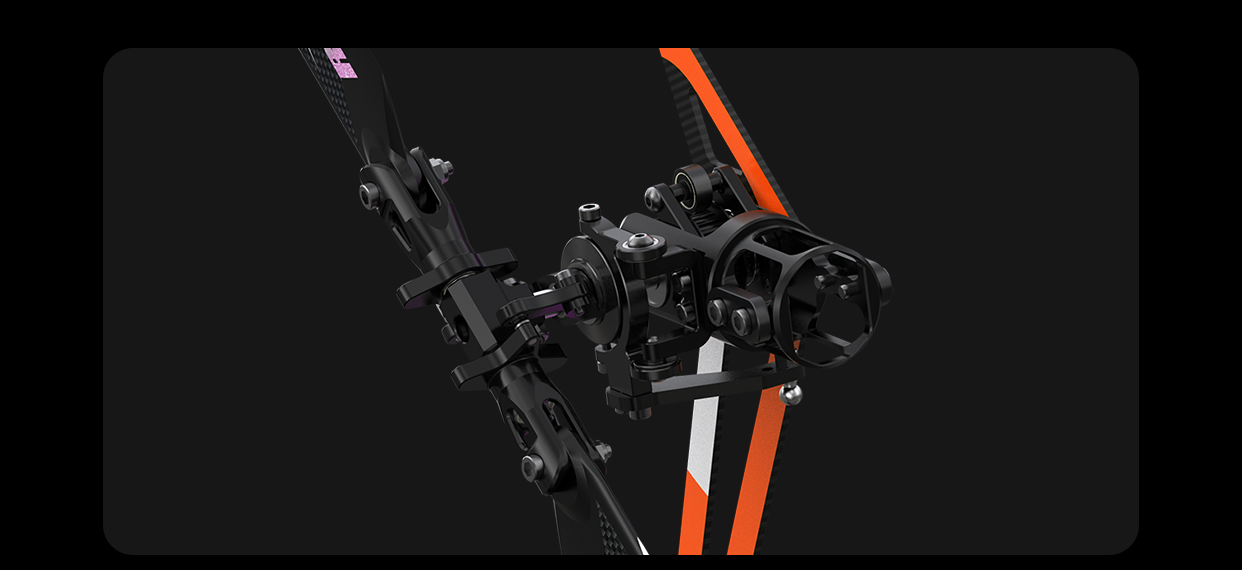

• Downscaled M7 tail rotor with 6 mm tail rotor shaft and 5 mm spindle shaft
• 28mm carbon fiber tail boom
• Single-piece aluminium tail housing
• Best-in-class tail performance, using the proven tail rotor design concept from M7
• Dynamic weights on the tail rotor reduce servo torques in flight
• Tail rotor transmission ratio of 95/20 = 4.75:1

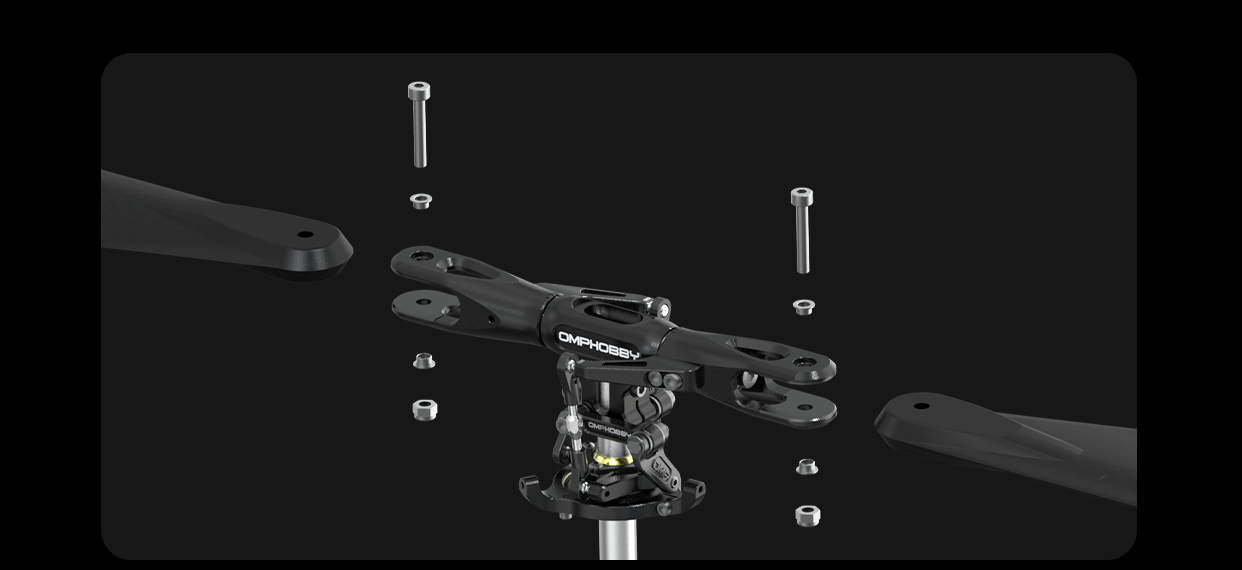

Main rotor features

• Long-throw main rotor design provides exceptional control authority in every situation
• 12 mm main rotor shaft, 8 mm spindle shaft
• Turnbuckles on every linkage
• 5mm ball joints provide exceptional safety and longevity
• Two damper options included, POM and 90° Shore durometer rubber rings
• Keyed, retained and integrated rotor blade washers enhance lead-lag damping, reduce vibrations, and simplify blade changes

Product Options

Kit + Blades:	OMP Hobby M5 Kit with RT-560U & RT-96U Blades
Kit + Motor & Blades:	OMP Hobby M5 Kit with SunnySky 4518 1100kV motor, RT-560U main & RT-96U tail blades
Kit + Motor, ESC & Blades:	OMP Hobby M5 Kit with SunnySky 4518 1100kV motor, Hobbywing Platinum 150A V5.1 ESC, RT-560U main & RT-96U tail blades
Combo Kit:	OMP Hobby M5 Kit with SunnySky 4518 1100kV motor, HOBBYWING Platinum 150A V5.1 ESC, KST X15 servos: 3x X15-1809 & 1x X15-855X, RT-560U main & RT-96U tail blades
Super Combo Kit:	OMP Hobby M5 Kit with SunnySky 4518 1100kV motor, HOBBYWING Platinum 150A V5.1 ESC, KST X15 servos: 3x X15-1809 & 1x X15-855X, RadioMaster NEXUS flight controller, RT-560U main & RT-96U tail blades
